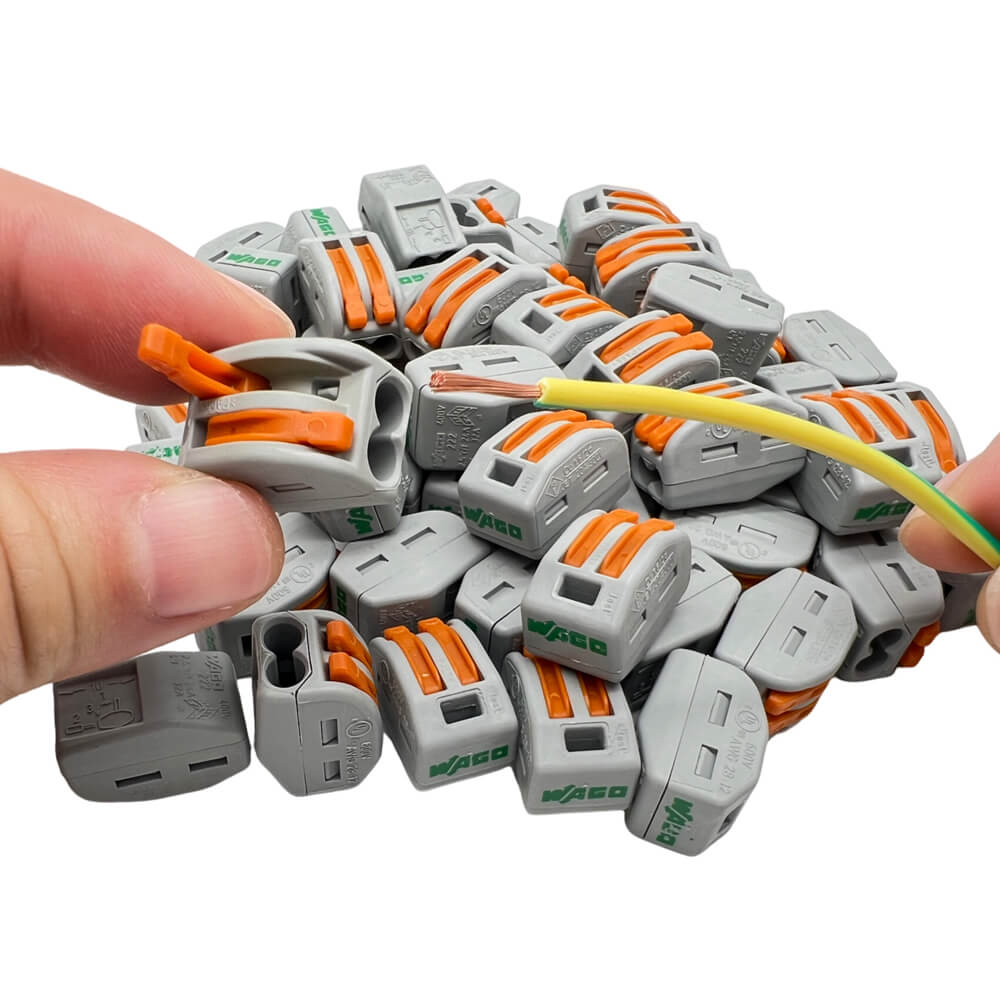

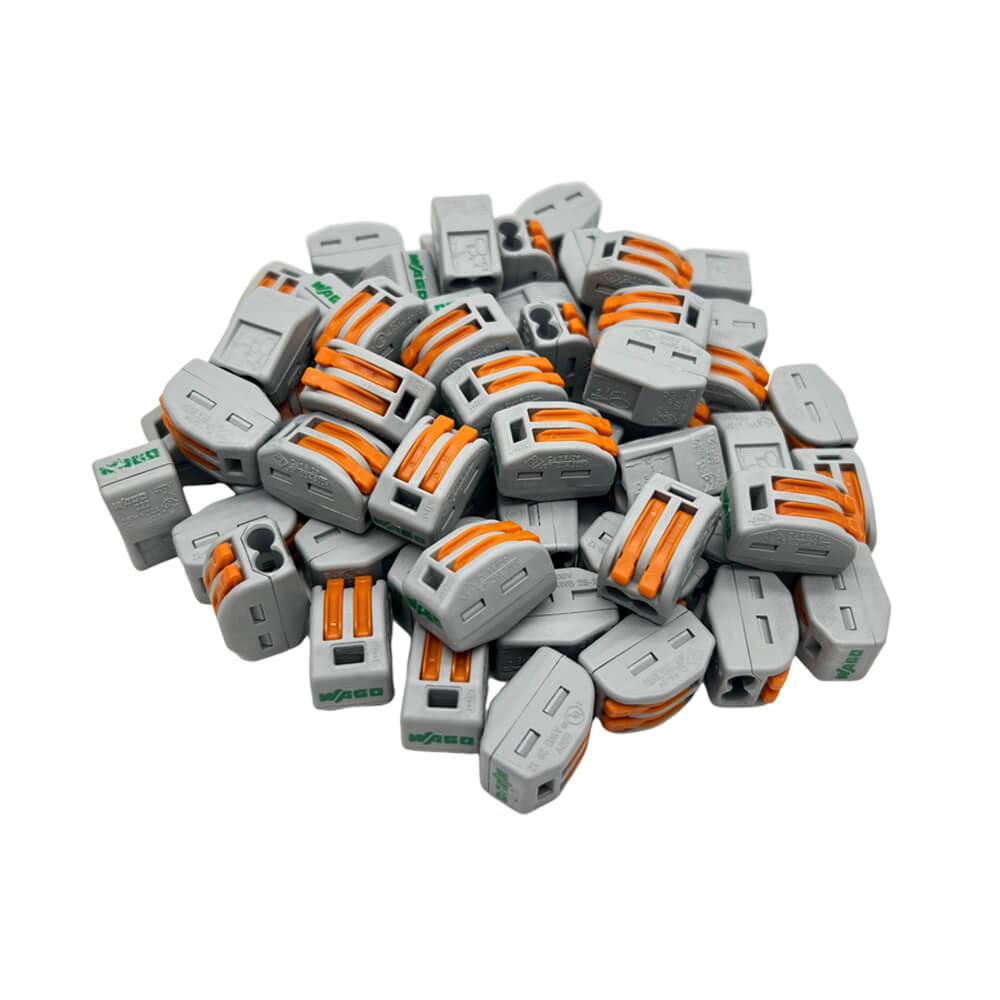

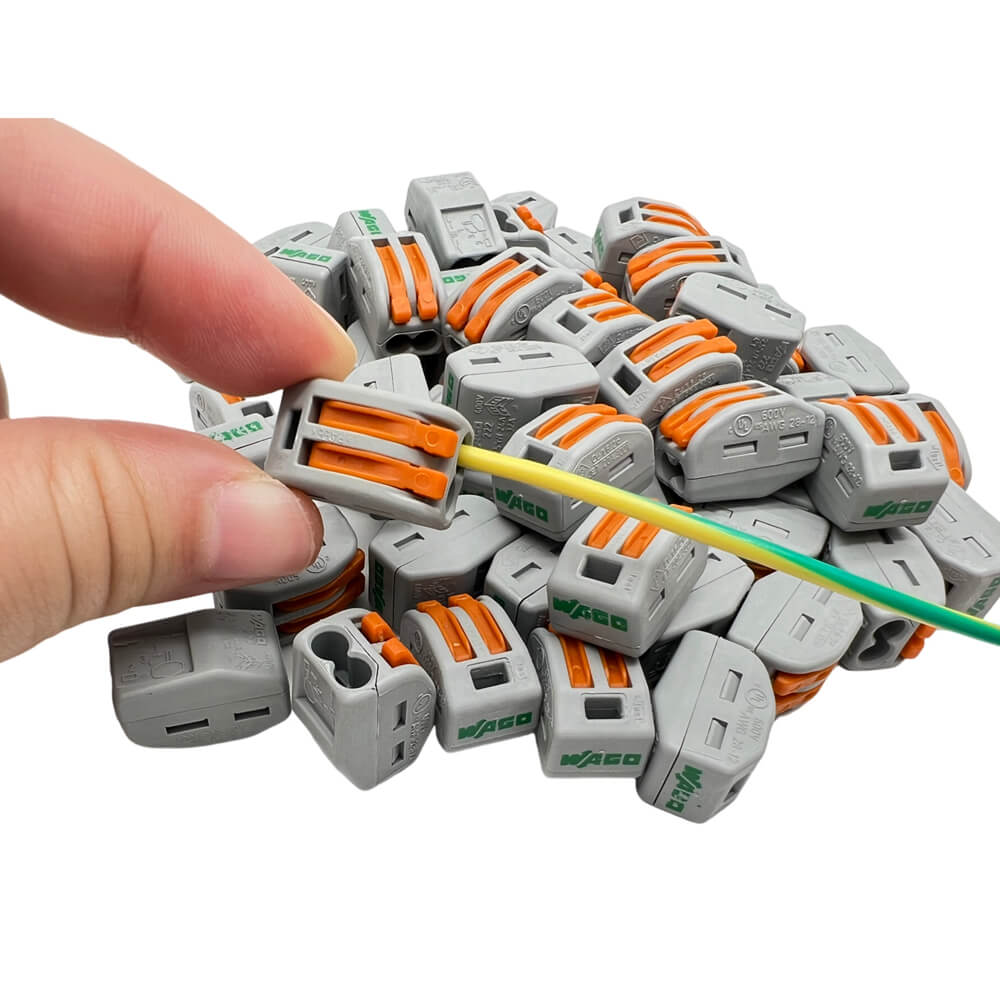

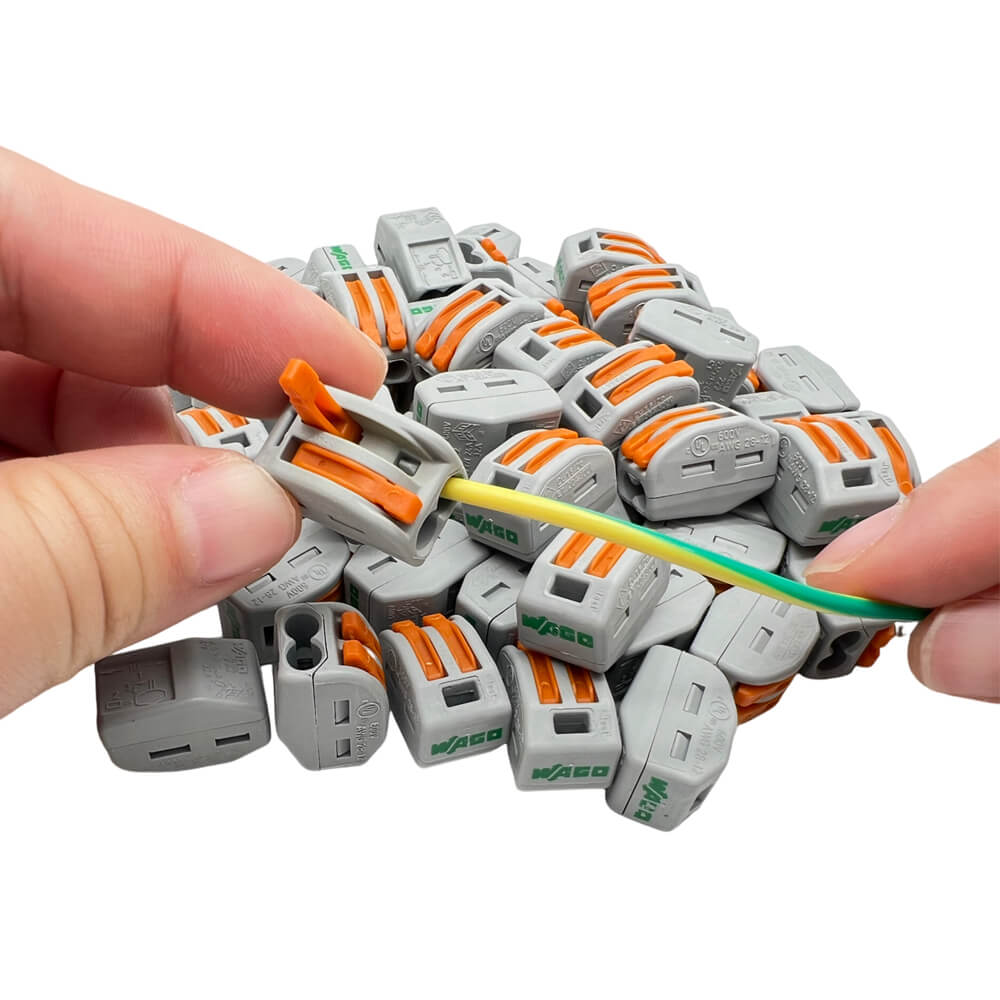

WAGO 222 Connectors 222-412 Lever Nuts 2 Conductor 32A Packed by 50 PCS
Cantidad:
Why We love it
- Original WAGO Brand Made in Germany
- Twist-Free, Tape-Free Connection, Simplifying Your Wiring Tasks
- Suitable For Solid, Stranded, and Flexible Copper Wires Quickly and Securely
-
Meet Industry Certifications such as UL, cUL, RoHS, REACH, and CE
Shortage
- Bigger Size than New WAGO 221 Series
- Slim Lever , Strong Spring will hurt finger without Attention
- Grey Housing can not see the Inside Wire Situation
Wago 222-412 Datasheet
| Category | Parameter | Value |
|---|---|---|
| UL Approvals | Approvals per | UL 486C |
| Rated voltage UL (Use Group C) | 600V | |
| Rated current UL (Use Group C) | 20A | |
| Connection Data | Connection points | 2 |
| Total number of potentials | 1 | |
| Connection 1 | Connection technology | CAGE CLAMP® |
| Actuation type | Lever | |
| Connectable conductor materials | Aluminum, Copper | |
| Solid conductor | 0.08 - 2.5 mm² / 28 - 12 AWG | |
| Stranded conductor | 0.08 - 2.5 mm² / 28 - 12 AWG | |
| Fine-stranded conductor | 0.08 - 4 mm² / 28 - 12 AWG | |
| Strip length | 9 - 10 mm / 0.35 - 0.39 inches | |
| Wiring direction | Side-entry wiring | |
| Physical Data | Width | 12.4 mm / 0.488 inches |
| Height | 14.5 mm / 0.571 inches | |
| Depth | 20.5 mm / 0.807 inches | |
| Material Data | Note (material data) | Information on material specifications can be found here |
| Color | Gray | |
| Flammability class per UL94 | V0 | |
| Fire load | 0.067 MJ | |
| Actuator color | Orange | |
| Weight | 3.1 g |
