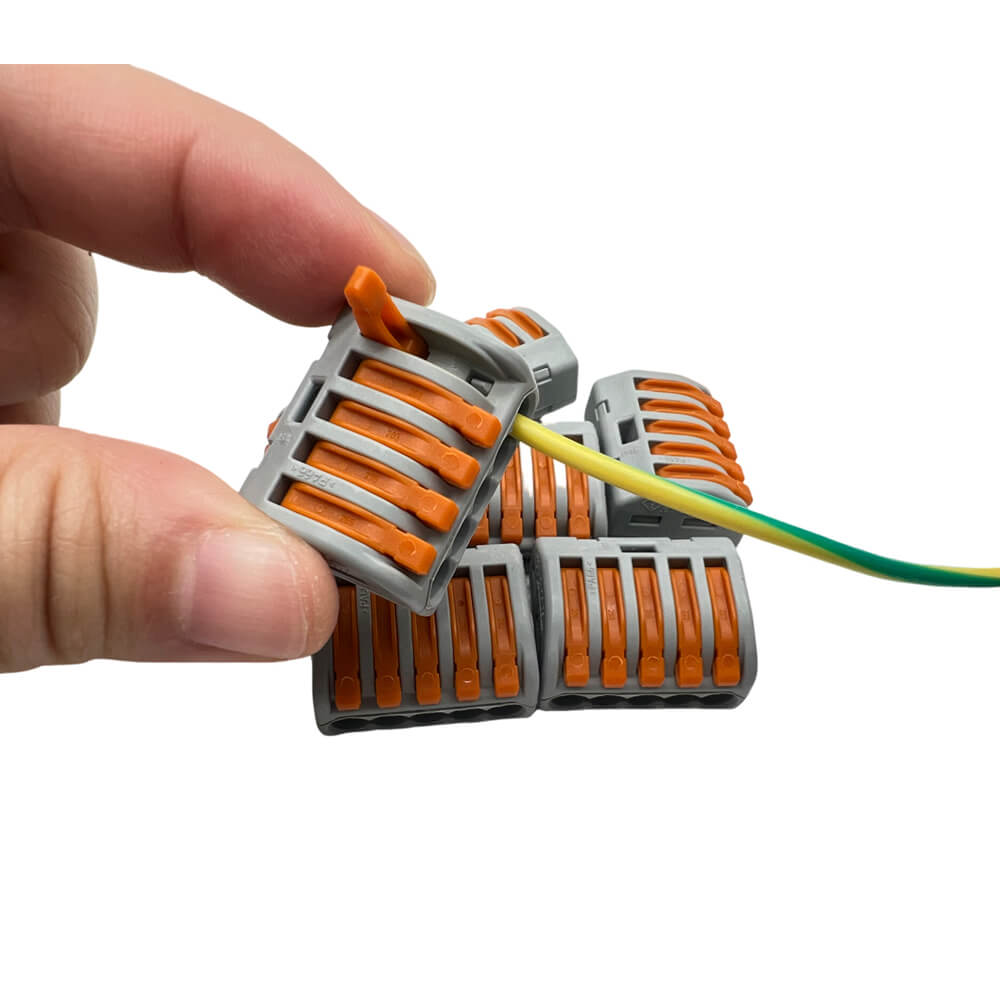

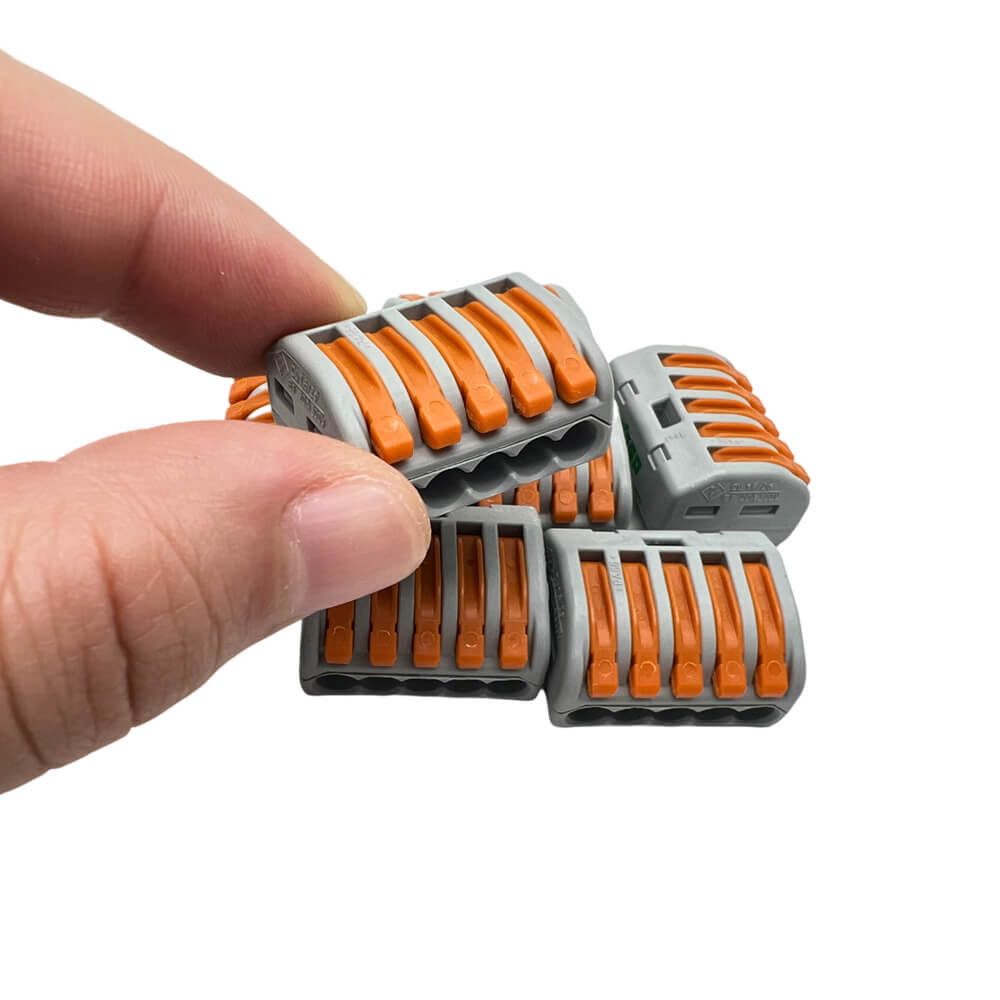

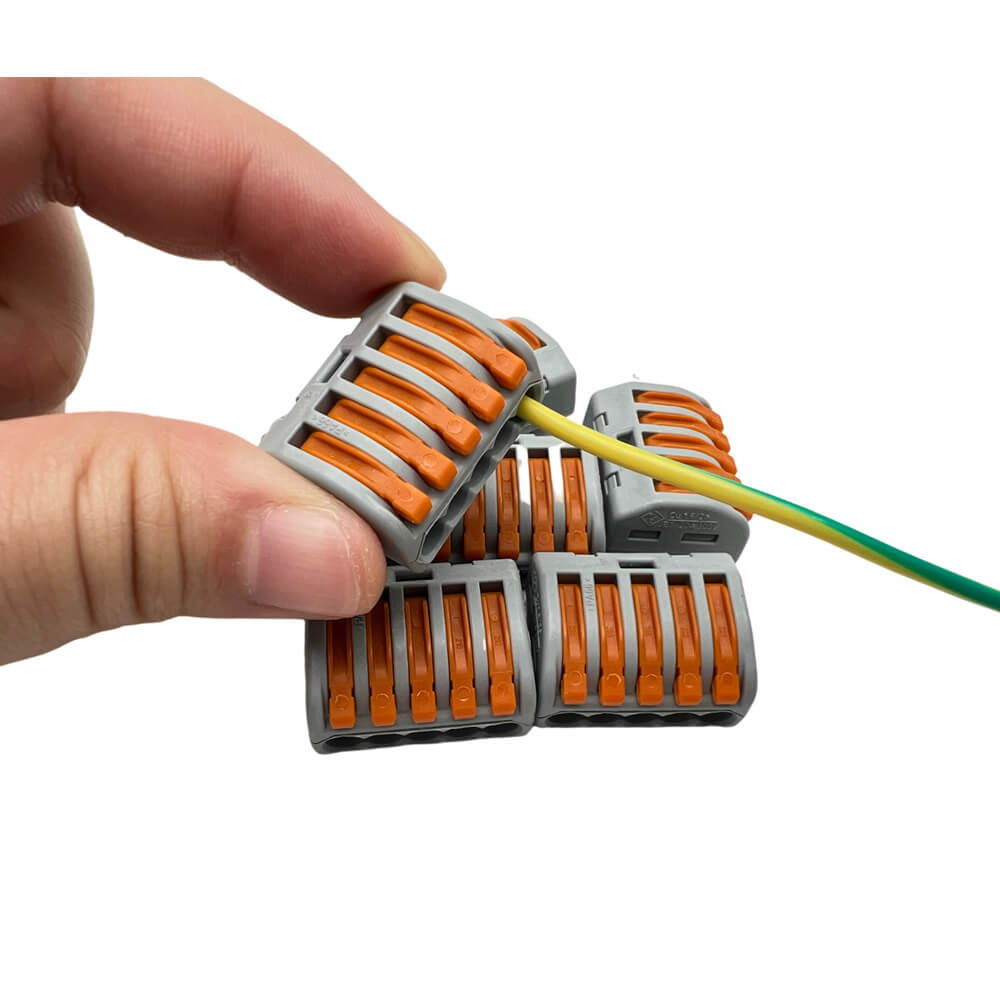

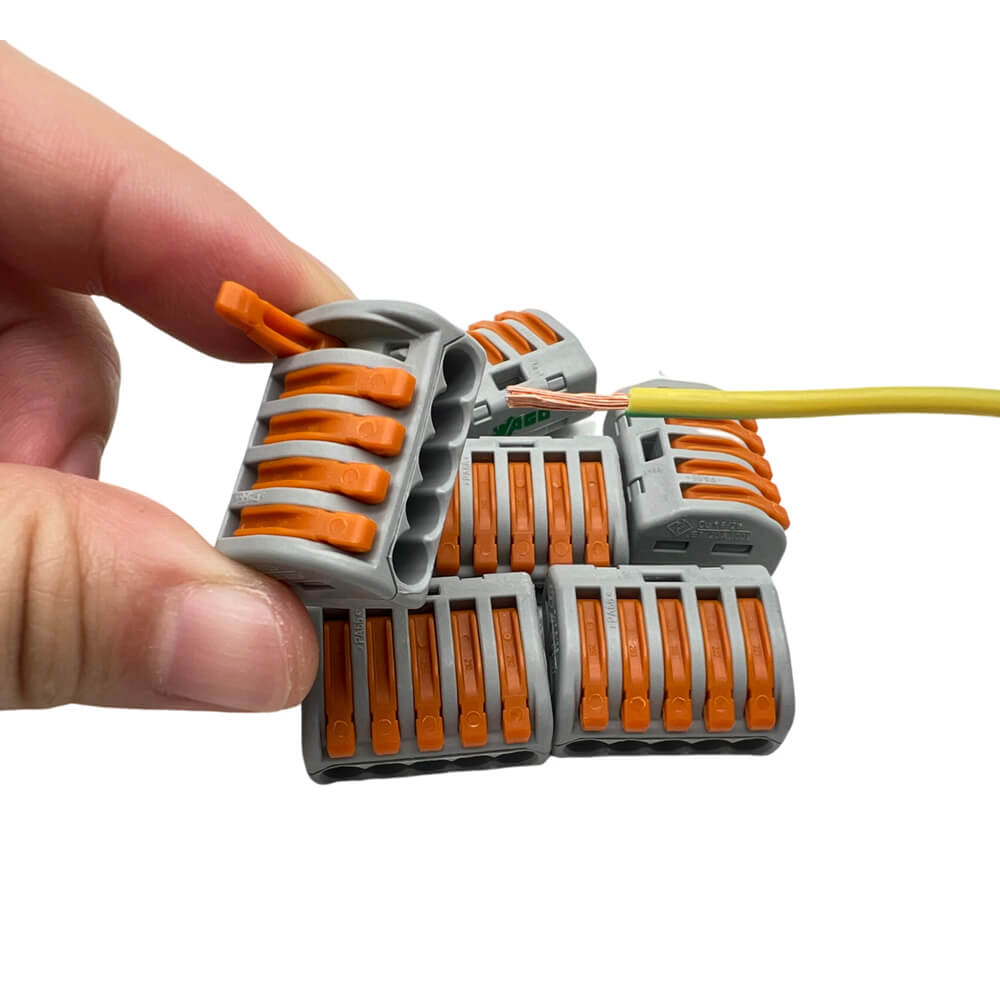

WAGO Clips 222-415 Connectors 5 Conductors 32A Packed by 40 PCS
Quantity:
Why We love it
- Original WAGO Brand Made in Germany
- Twist-Free, Tape-Free Connection, Simplifying Your Wiring Tasks
- Suitable For Solid, Stranded, and Flexible Copper Wires Quickly and Securely
-
Meet Industry Certifications such as UL, cUL, RoHS, REACH, and CE
Shortage
- Bigger Size than New WAGO 221 Series
- Slim Lever , Strong Spring will hurt finger without Attention
- Grey Housing can not see the Inside Wire Situation
Wago 222-415 Datasheet
| Category | Parameter | Value |
|---|---|---|
| IEC Approvals | Ratings per | EN 60664 |
| Overvoltage category | III | |
| Overvoltage category | III | |
| Overvoltage category | II | |
| Pollution degree | 3 | |
| Pollution degree | 2 | |
| Pollution degree | 2 | |
| Nominal voltage | 400 V | |
| Rated surge voltage | 4 kV | |
| Rated current | 32 A | |
| UL Approvals | Approvals per | UL 486C |
| Rated voltage UL (Use Group C) | 600V | |
| Rated current UL (Use Group C) | 20A | |
| Connection Data | Connection points | 5 |
| Total number of potentials | 1 | |
| Connection 1 | Connection technology | CAGE CLAMP® |
| Actuation type | Lever | |
| Connectable conductor materials | Aluminum, Copper | |
| Solid conductor | 0.08 - 2.5 mm² / 28 - 12 AWG | |
| Stranded conductor | 0.08 - 2.5 mm² / 28 - 12 AWG | |
| Fine-stranded conductor | 0.08 - 4 mm² / 28 - 12 AWG | |
| Strip length | 9 - 10 mm / 0.35 - 0.39 inches | |
| Wiring direction | Side-entry wiring | |
| Physical Data | Width | 26.6 mm / 1.047 inches |
| Height | 14.5 mm / 0.571 inches | |
| Depth | 20.5 mm / 0.807 inches | |
| Material Data | Note (material data) | Information on material specifications can be found here |
| Color | Gray | |
| Flammability class per UL94 | V0 | |
| Fire load | 0.129 MJ | |
| Actuator color | Orange | |
| Weight | 6.6 g |
